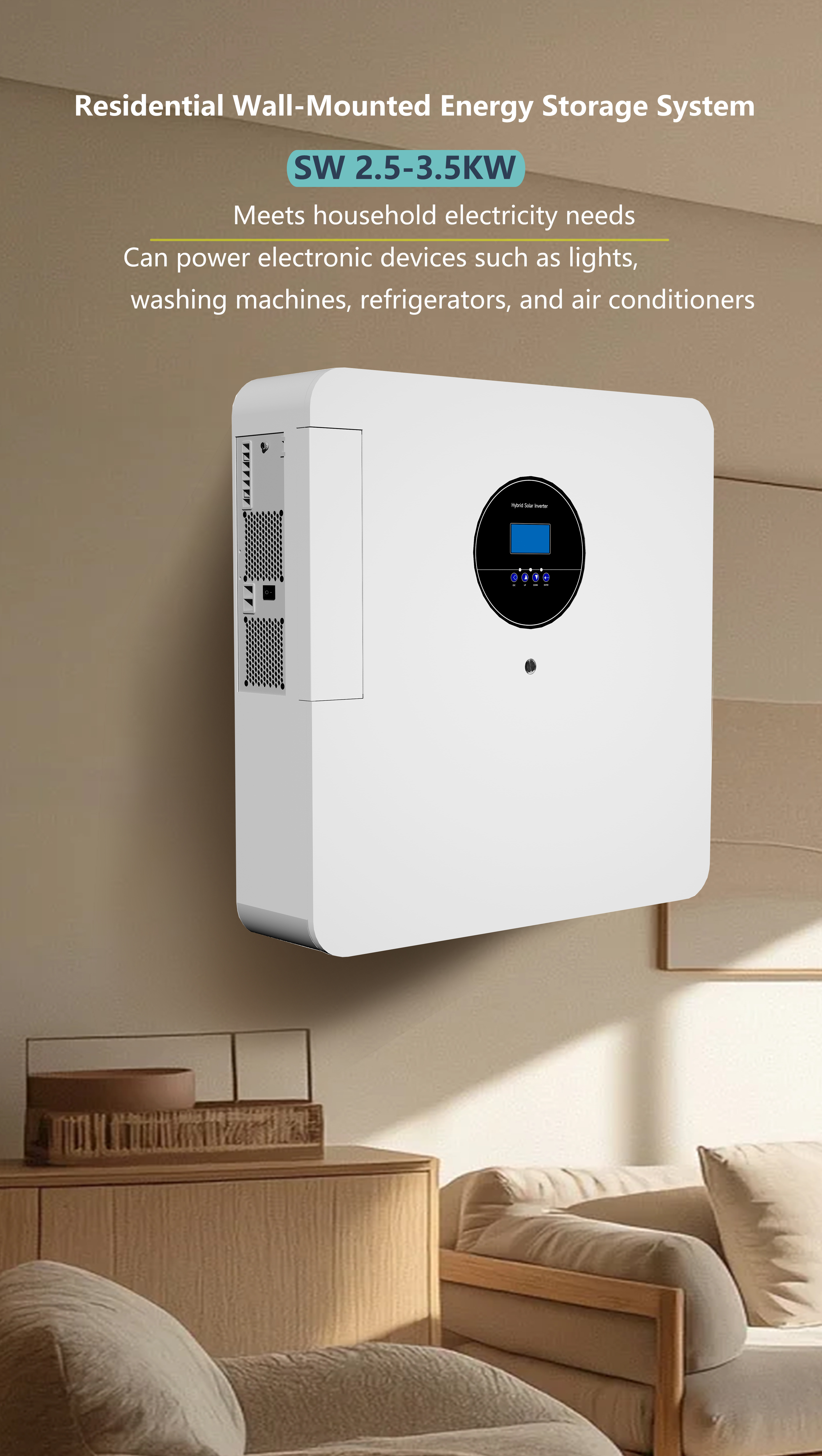

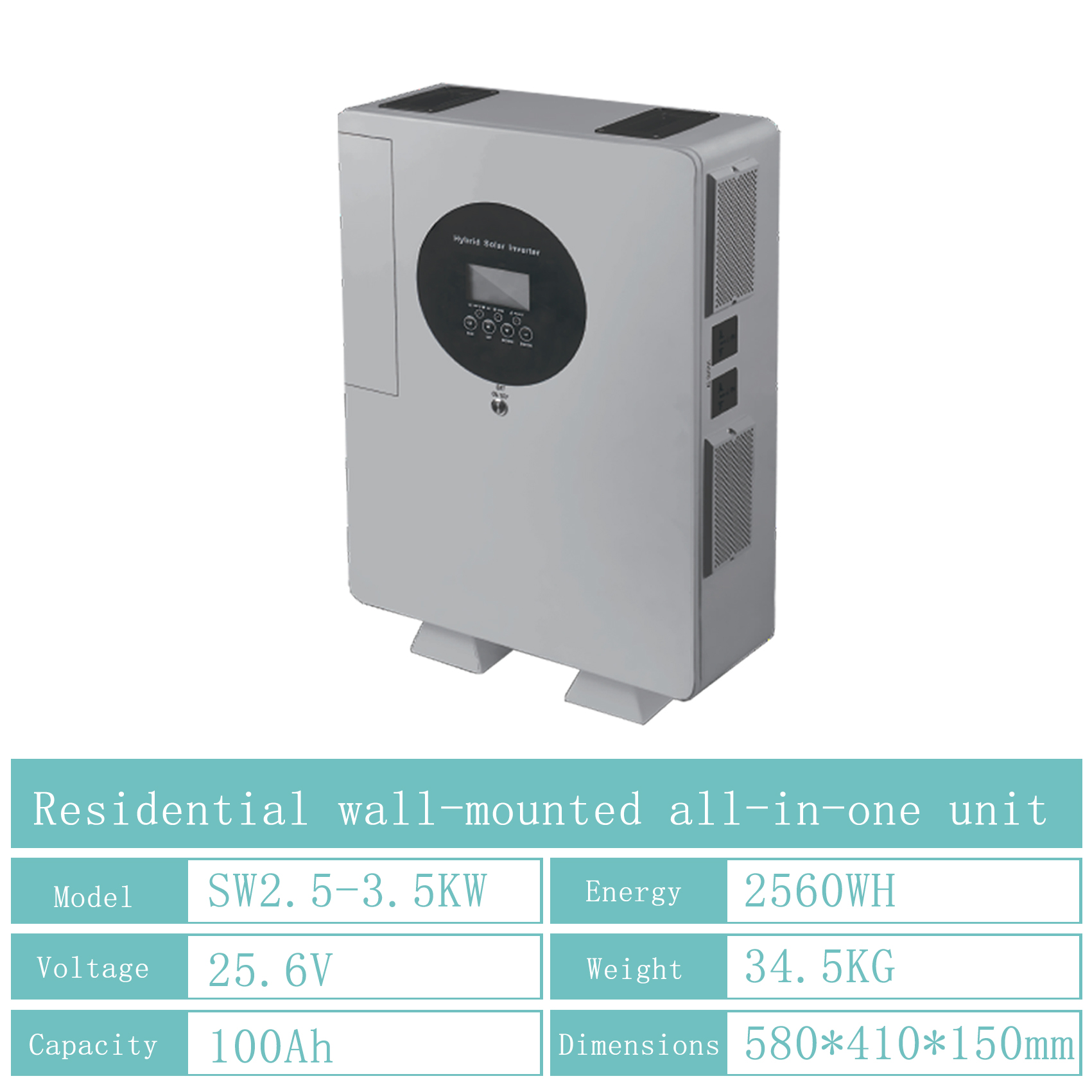

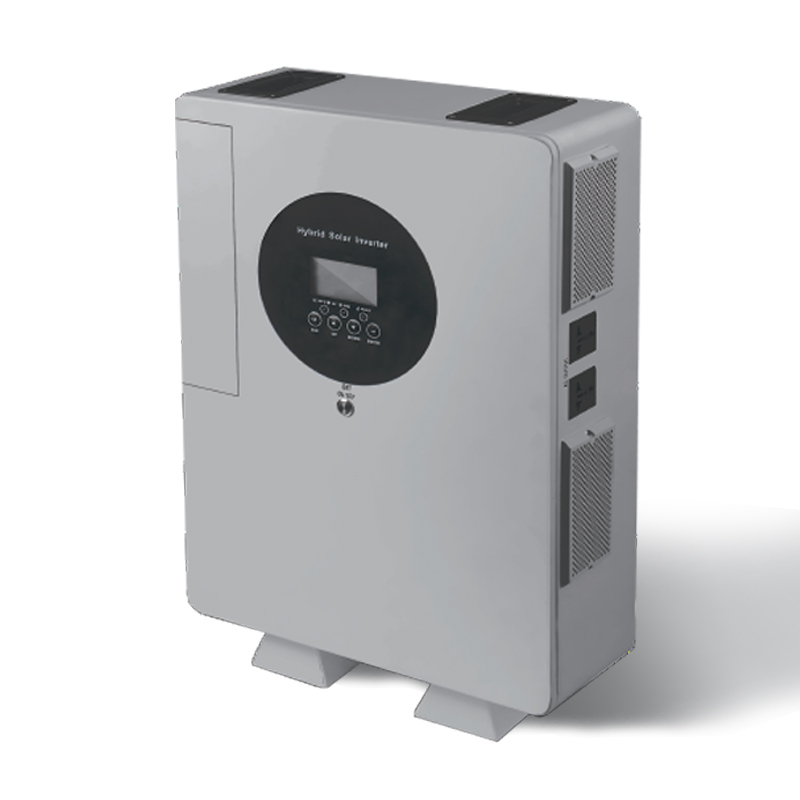

SW2.5KWh-3.5KW Wall-Mounted Energy Storage All-in-One Machine

Residential wall-mounted all-in-one unit, 2.5–3.5 kW, 2560 Wh capacity, supports 110 V/230 V output, MPPT solar charging, suitable for home energy storage, UPS backup power, and other applications.
CONTACT US

Product Details



Product Specifications

Model                                                              SW2.5-3.5KW
Battery
Nominal voltage  25.6V
Nominal capacity 100Ah
Rated energy 2560WH
Charge termination voltage                                     29.2V
Discharge termination voltage 22.4-23.2V
                             Inverter
Rated Power 3.5KW
Input frequency 60Hz/50Hz
Solar/Mains charging input 1500W(30-115V)PV+AC 120A,MPPT60A
Output voltage 100V/110V/220V/230VAC±5%
Output waveform Pure Sine Wave
Commnication interface RS232、RS485、CAN
Work envronment Temperature:-20°~60°;Humidity:≤95%;Altitude ≤4000m
Protection features Over voltage,low voltage,overload,short circuit,over temperature,etc.
Product &package size 580*410*150/650*490*250mm
Product &package weight 34.5/41kg
